Bronze porous parts
Discs / Plates / Tubes / Cartridges / Silencers
More than 1000 available tools for all porous bronze parts
Special designs available on request
Bronze B – Discs / plates / Tubes / Cartridges / Silencers
Bronze porous parts

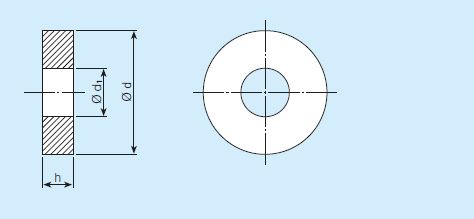

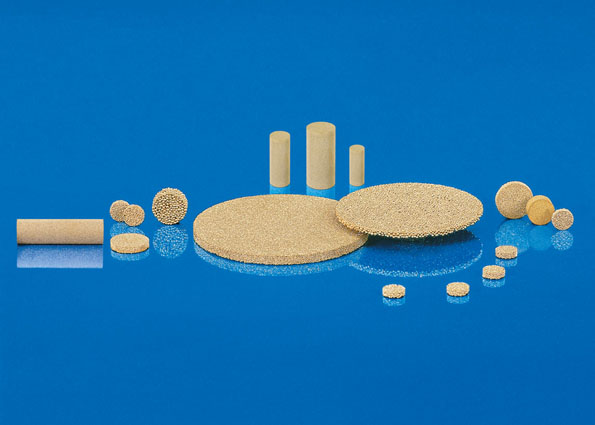

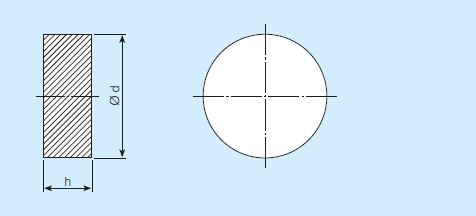

Discs and Plugs of sintered Bronze | SIKA-B
For other ø, thank to contact us
- Ø from 1 mm to Ø d 500 mm, seamless
- Ø from 500 mm welded construction from porous sections
- Thickness up to 100 mm

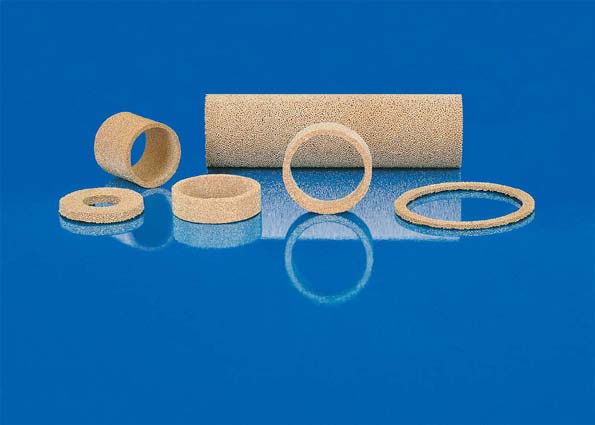

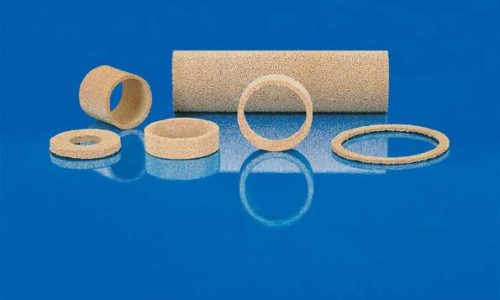

Hollow cylinder of sintered Bronze | SIKA-B
For other ø, thank to contact us
Hollow cylinder sinter bronze | SIKA-B
For other ø, thank to contact us
- Ø 4 mm to Ø 500 mm, seamless construction
- Ø > 500 mm welded from sections
- Length up to h 900 mm and according diameter, either seamless or welded from sections

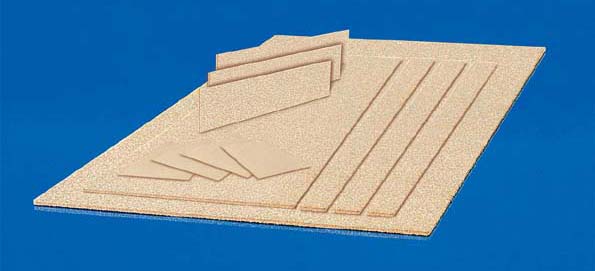

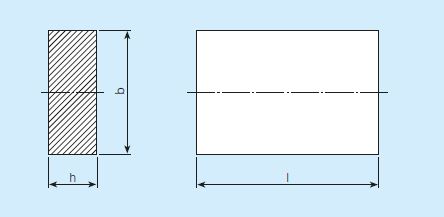

Plates of sintered Bronze | SIKA-B
For other sizes, thank to contact us
- l 1200 mm
- b 300 mm
- h 70 mm
- Larger dimensions welded from sections

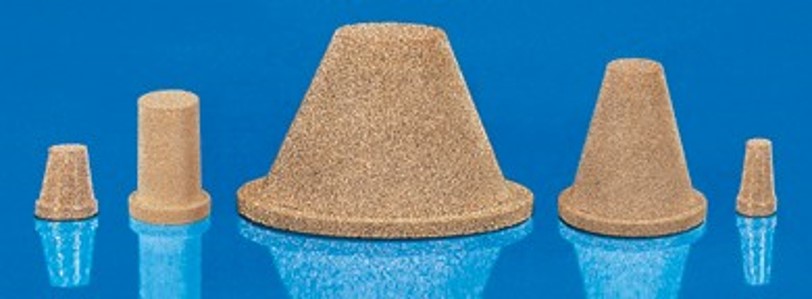

Conical moulds with or without flange of sintered Bronze | SIKA-B
For other ø, thank to contact us
- Ø d 4 mm to Ø d 100 mm
- h 8 mm to h 200 mm

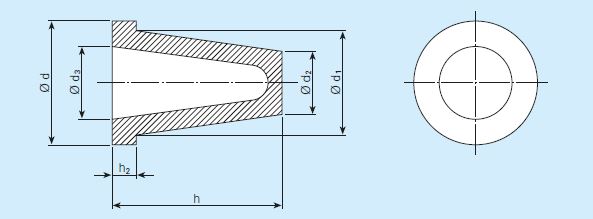

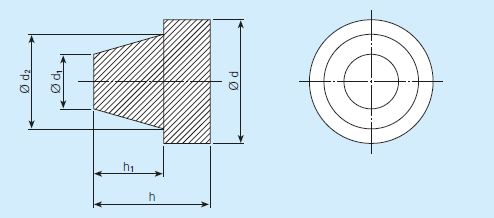

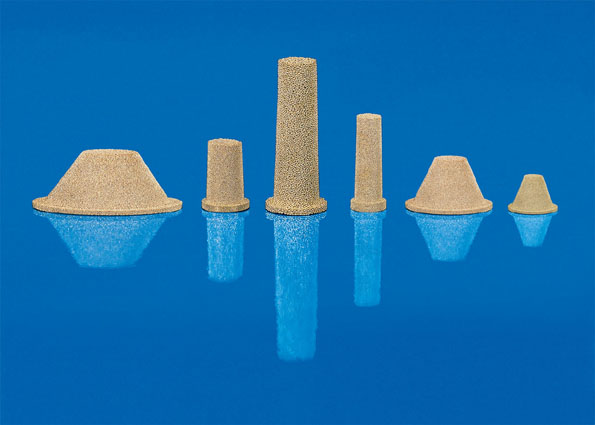

SIKA-B-Cones with flange of sintered Bronze | SIKA-B
For other ø, thank to contact us
- Ø 2 mm to Ø 100 mm
- h 2 mm to h 100 mm

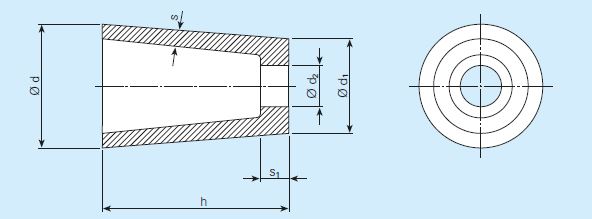

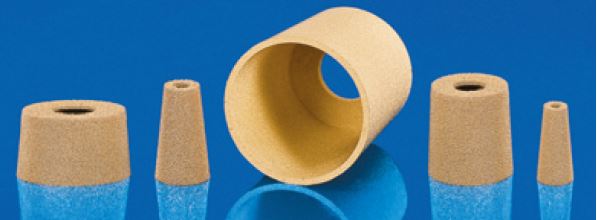

Conical moulds | SIKA-B
For other ø, thank to contact us
- Ø d 4 mm to Ø d 100 mm
- h 5 mm to h 200 mm

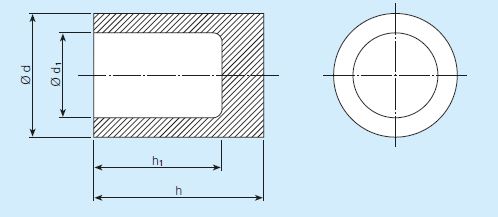

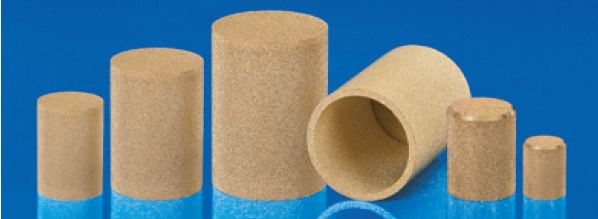

Moulds of sintered Bronze | SIKA-B
For other ø, thank to contact us
- Ø 4 mm to Ø 100 mm, seamless
- Ø from 500 mm welded from sections up to h 900 mm

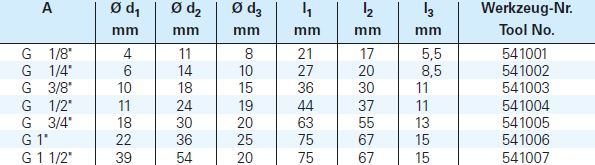

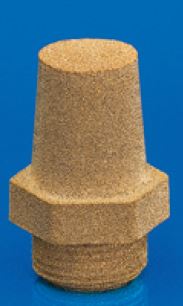

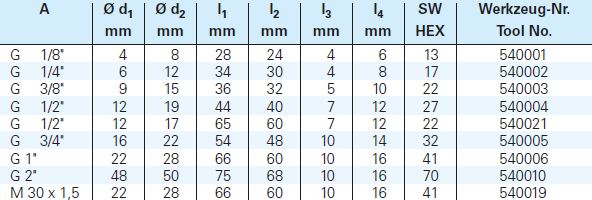

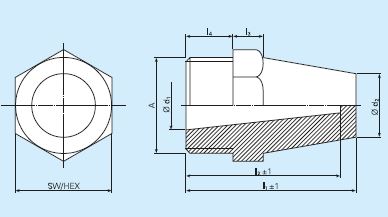

Silencer made of sintered bronze with a hexagon | SIKA-B
For other ø, thank to contact us
Quality SIKA-B 80 (Material-No. 2.1052 = CuSn 11)

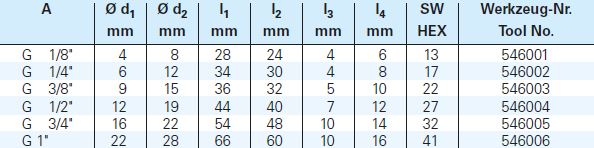

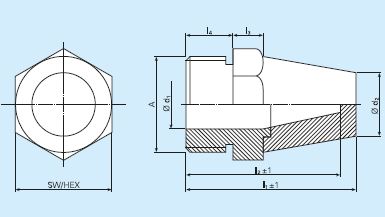

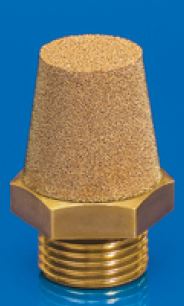

Silencer made of sintered bronze sintered together with a solid brass hexagon | SIKA-B
For other ø, thank to contact us
Quality SIKA-B 80 (Material-No. 2.1052 = CuSn 11)

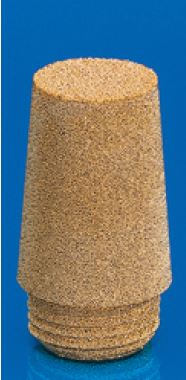

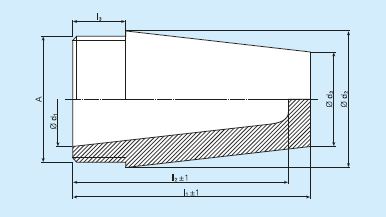

Silencer made of sintered bronze | SIKA-B
For other ø, thank to contact us
Quality SIKA-B 80 (Material-No. 2.1052 = CuSn 11)

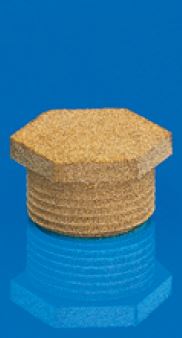

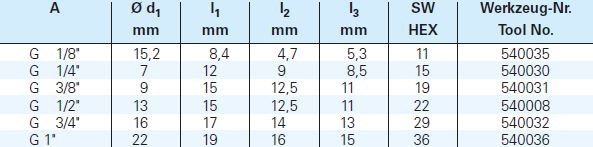

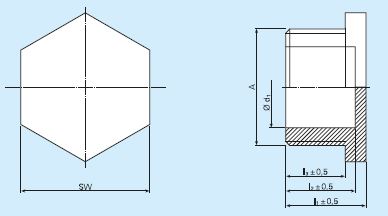

Vent plug made of sintered bronze | SIKA-B
For other ø, thank to contact us
Quality SIKA-B 80 (Material-No. 2.1052 = CuSn 11)

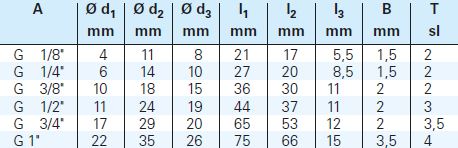

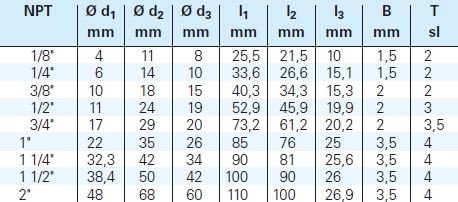

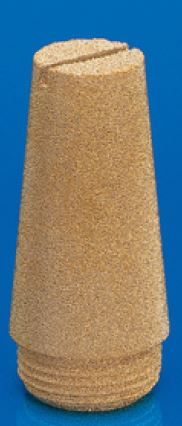

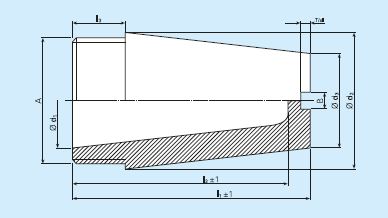

Silencer made of sintered bronze with a slot | SIKA-B
For other ø, thank to contact us
Quality SIKA-B 80 (Material-No. 2.1052 = CuSn 11)

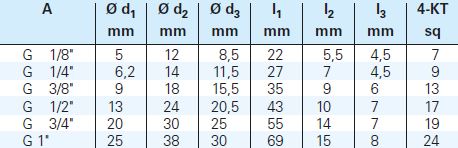

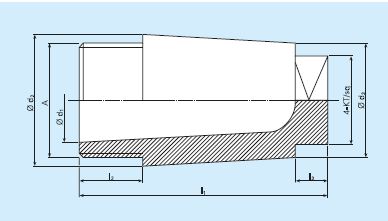

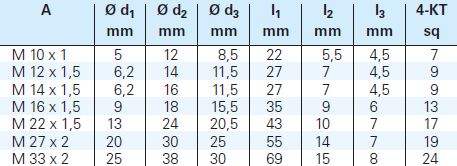

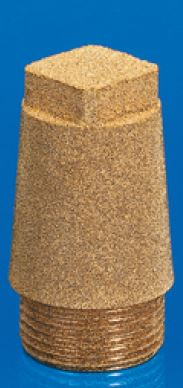

Silencer made of sintered bronze with a square | SIKA-B
For other ø, thank to contact us
Quality SIKA-B 80 (Material-No. 2.1052 = CuSn 11)

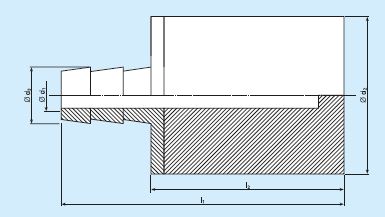

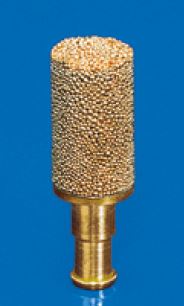

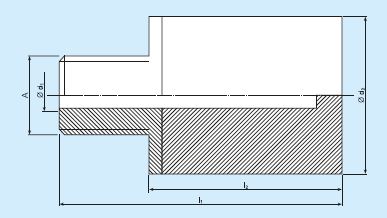

Silencer made of sintered bronze sintered together with a solid brass fitting | SIKA-B
For other ø, thank to contact us
Quality SIKA-B 80 (Material-No. 2.1052 = CuSn 11)
Quality SIKA-B 80 (Material-No. 2.1052 = CuSn 11)

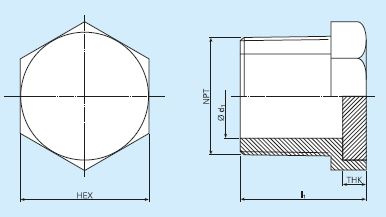

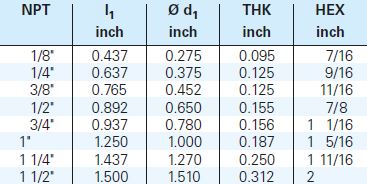

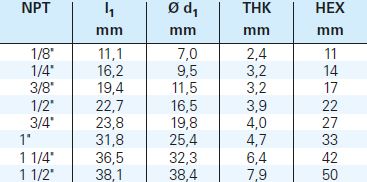

Vent plug made of sintered bronze sintered together with a solid brass NPT fitting | SIKA-B
For other ø, thank to contact us
Quality SIKA-B 80 (Material-No. 2.1052 = CuSn 11)

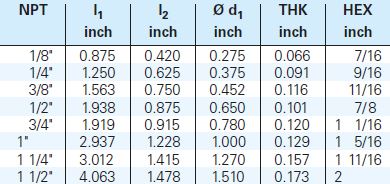

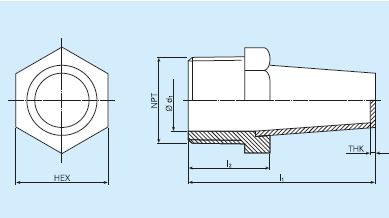

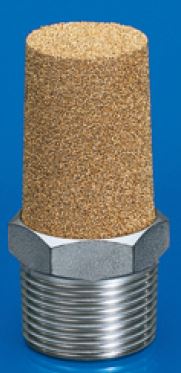

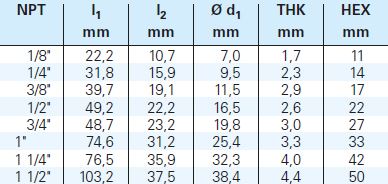

Silencer made of sintered bronze with NPT hexagon connection | SIKA-B
For other ø, thank to contact us
Quality SIKA-B 80 (Material-No. 2.1052 = CuSn 11)
